Wood Dock Ramp Roller Kit
HomeStore

Wood Dock Ramp Roller Kit

Wood Dock Ramp Roller Kit

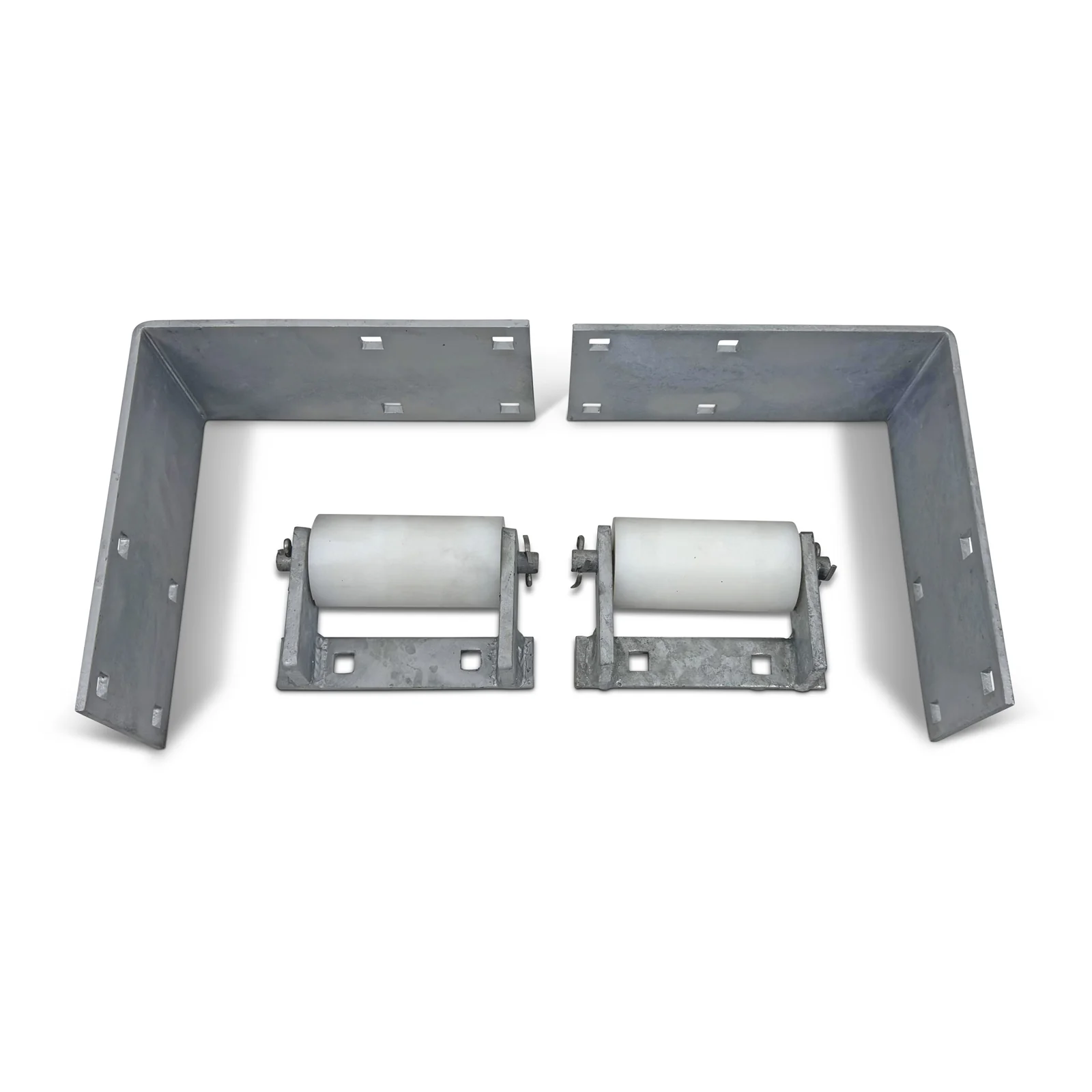

Building a roller ramp has never been easier using our ramp roller kits. The outside roller brackets are backed up with our standard WD-E Outside Corner Ends and the center roller bracket is backed by our WD-W Washer Plates. Rollers included.

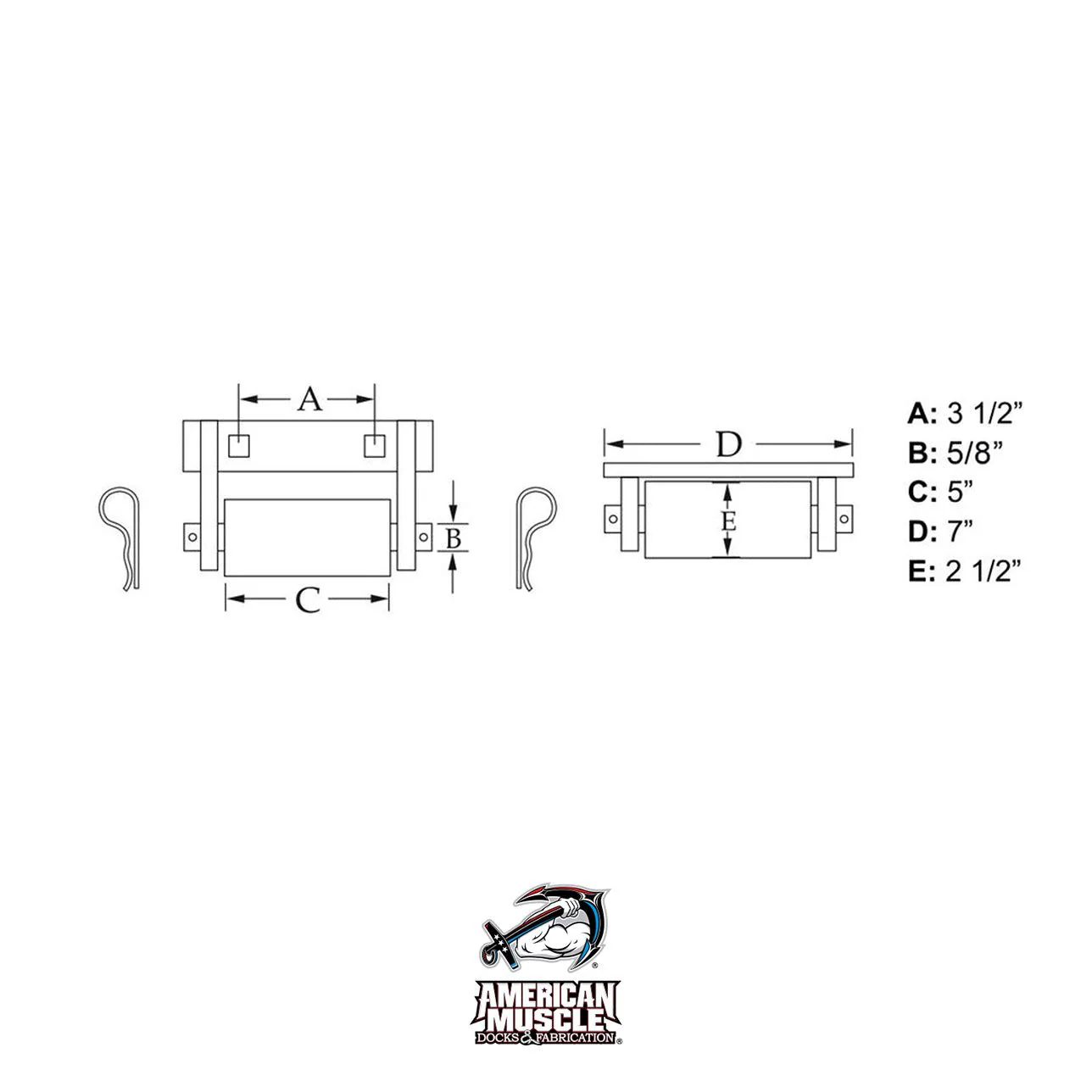

  • ¼” Thick Base Plate 1.5”x 7”
  • 3/8” Thick Tabs for Roller 2”x 3”
  • 9/16” Square Mounting Bolt Holes
  • 3.5” Bolt Hole Centers
  • 5/8” Shaft for Roller
  • 2.5”D x 5”L Roller
  • Galvanized Coated


The WD-BAR34 is for 3' to 4' ramps and comes with two rollers and two outside corners.

The WD-BAR56 is for 5' to 6' ramps and comes with three rollers, two outside corners, and a washer plate.

Select Select Size
From $31.50

Original: $90.00

-65%
Wood Dock Ramp Roller Kit—

$90.00

$31.50

More Images

Wood Dock Ramp Roller Kit - Image 2

Wood Dock Ramp Roller Kit

Building a roller ramp has never been easier using our ramp roller kits. The outside roller brackets are backed up with our standard WD-E Outside Corner Ends and the center roller bracket is backed by our WD-W Washer Plates. Rollers included.

  • ¼” Thick Base Plate 1.5”x 7”
  • 3/8” Thick Tabs for Roller 2”x 3”
  • 9/16” Square Mounting Bolt Holes
  • 3.5” Bolt Hole Centers
  • 5/8” Shaft for Roller
  • 2.5”D x 5”L Roller
  • Galvanized Coated


The WD-BAR34 is for 3' to 4' ramps and comes with two rollers and two outside corners.

The WD-BAR56 is for 5' to 6' ramps and comes with three rollers, two outside corners, and a washer plate.

Product Information

Shipping & Returns

Description

Building a roller ramp has never been easier using our ramp roller kits. The outside roller brackets are backed up with our standard WD-E Outside Corner Ends and the center roller bracket is backed by our WD-W Washer Plates. Rollers included.

  • ¼” Thick Base Plate 1.5”x 7”
  • 3/8” Thick Tabs for Roller 2”x 3”
  • 9/16” Square Mounting Bolt Holes
  • 3.5” Bolt Hole Centers
  • 5/8” Shaft for Roller
  • 2.5”D x 5”L Roller
  • Galvanized Coated


The WD-BAR34 is for 3' to 4' ramps and comes with two rollers and two outside corners.

The WD-BAR56 is for 5' to 6' ramps and comes with three rollers, two outside corners, and a washer plate.
