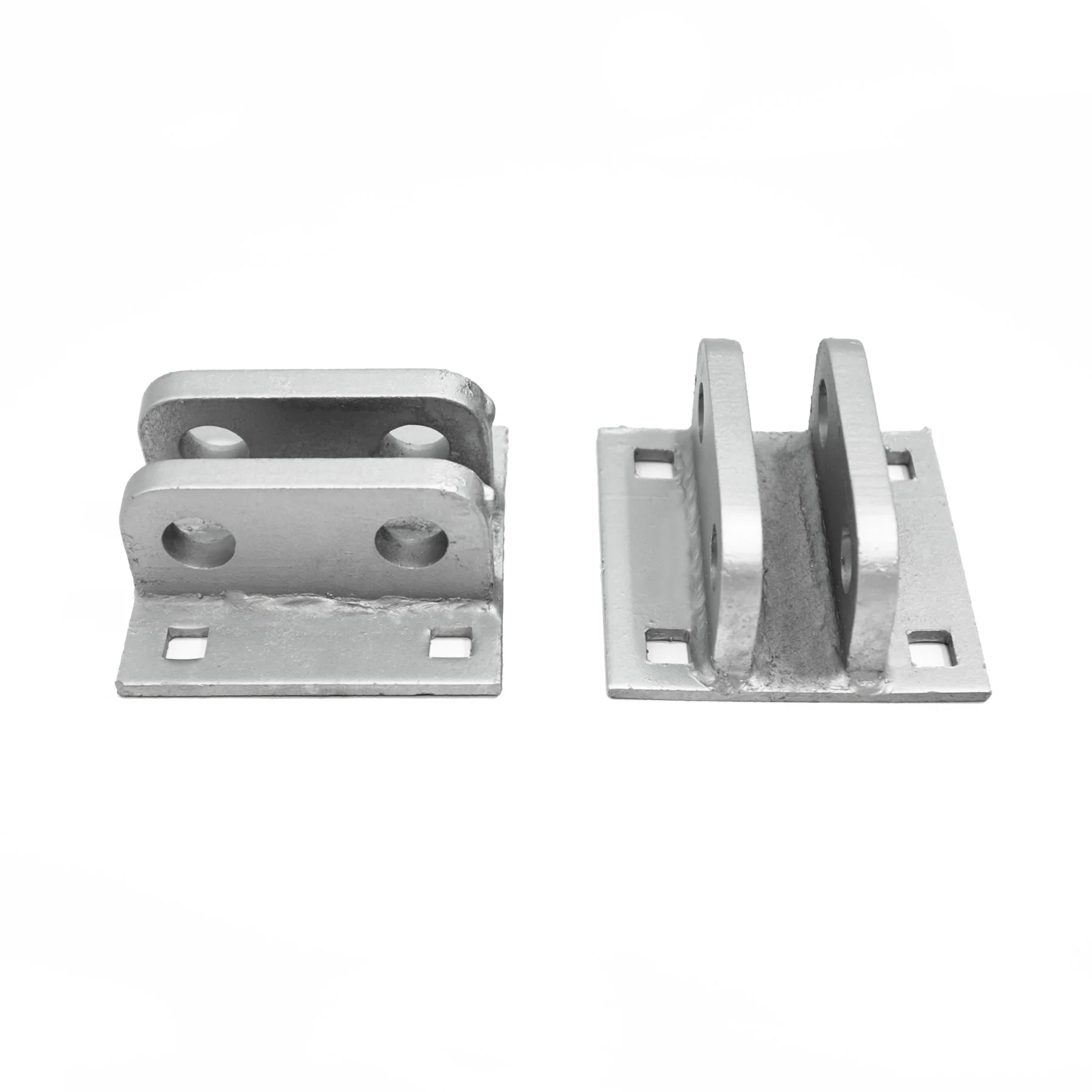

Wood Dock Non-Articulating Double Pin Bracket-Female
Construct rigid, non-moving hinges for your dock or other structures with our robust Non-Articulating Double Pin Bracket Female connector. Featuring two pre-drilled holes for simple and secure attachment, this bracket ensures a stable and fixed connection point. The sturdy tabs are also pre-drilled to accommodate a standard 3/4" pin or bolt for added strength.

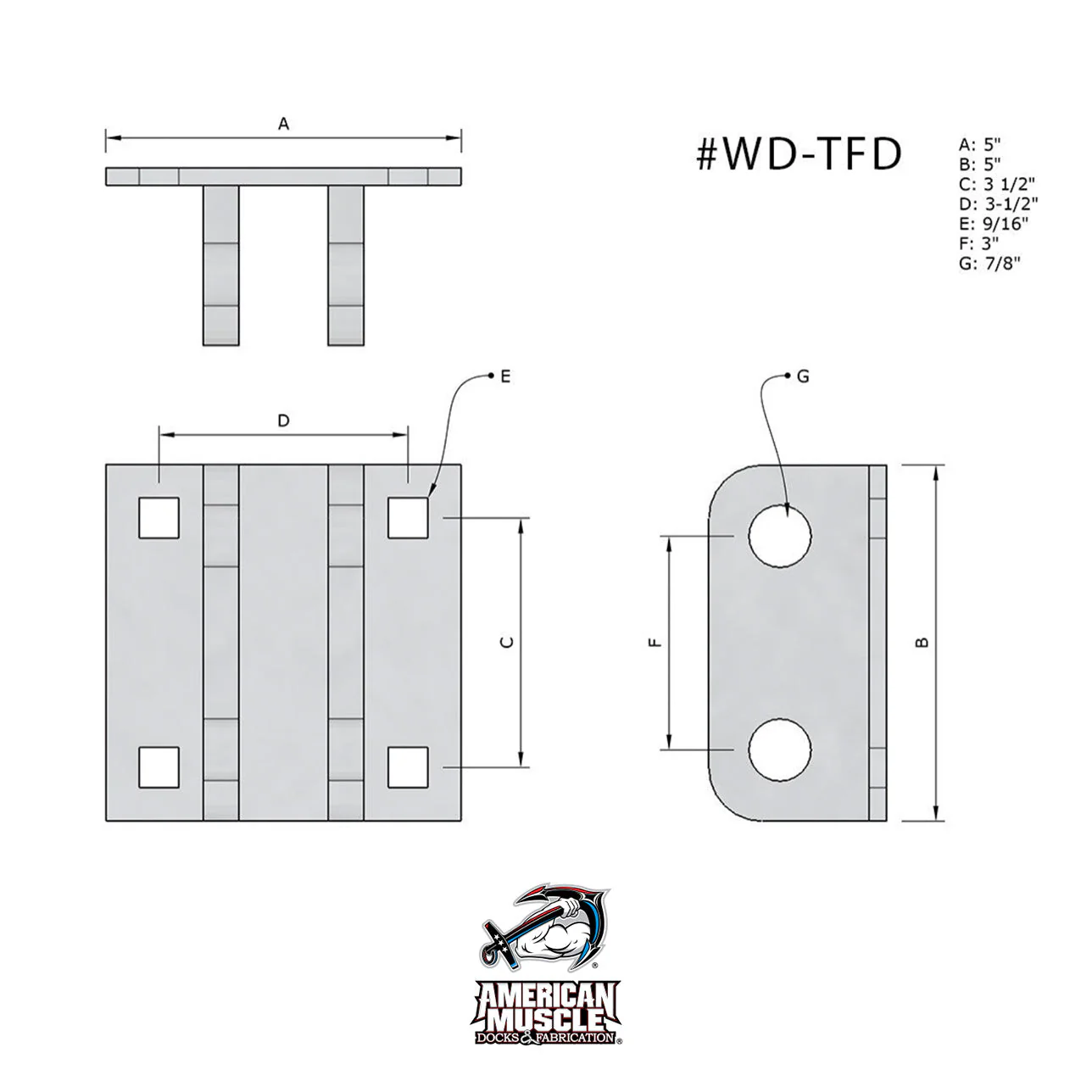

- ¼” x 5”x 5” Base Plate
- 9/16” Square Mounting Bolt Holes
- 3.5”x 3.5” Bolt Hole Centers
- 2(x) ½” Thick Female Tabs, 3” Hole Centers, 13/16” Hole
- Galvanized Coated
Weight: 3.50 LBS
Sold Individually
Original: $24.00
-65%$24.00
$8.40More Images
Wood Dock Non-Articulating Double Pin Bracket-Female
Construct rigid, non-moving hinges for your dock or other structures with our robust Non-Articulating Double Pin Bracket Female connector. Featuring two pre-drilled holes for simple and secure attachment, this bracket ensures a stable and fixed connection point. The sturdy tabs are also pre-drilled to accommodate a standard 3/4" pin or bolt for added strength.
- ¼” x 5”x 5” Base Plate
- 9/16” Square Mounting Bolt Holes
- 3.5”x 3.5” Bolt Hole Centers
- 2(x) ½” Thick Female Tabs, 3” Hole Centers, 13/16” Hole
- Galvanized Coated
Weight: 3.50 LBS
Sold Individually
